The Eleven Test Categories

Every test on this site sits under a clinical category, on disk and in the URL, so a path reads Lab Tests → category → test and the sub-menu above always shows the neighbouring tests a doctor would order alongside the one you are reading.

This visual reference helps you understand the most commonly ordered annual lab tests at a glance. Each marker includes a color-coded range bar showing where low, normal, and high values fall so you can quickly interpret your results and have more informed conversations with your doctor.


⚖️ Interactive Visualization Blood pH — hold the acid–base balance yourself Keep blood pH between 7.35 and 7.45 — blow off CO₂ with the lungs in minutes, dump acid through the kidneys over hours, then break it with hyperventilation or diabetic ketoacidosis. Launch → 💊 Interactive Visualization Pharmacokinetics — follow a pill through ADME Swallow a pill and follow it through absorption, the liver's first-pass cut, distribution, CYP450 metabolism and kidney excretion — then block an enzyme with grapefruit and watch levels climb. Launch → 💡 Interactive Visualization Pulse Oximetry — read oxygen with two colours of light See how a finger clip reads your blood oxygen with two colours of light — measuring only the pulsing artery signal — and why it can read dangerously normal in carbon-monoxide poisoning. Launch →

Table of Contents


How to Read the Range Bars

RED = LOW (below normal) GREEN = NORMAL (reference range) BLUE = OPTIMAL (functional/optimal) ORANGE = HIGH (above normal)

Each bar is divided into segments representing where your result falls. The numbers on each segment show the threshold values. Ranges shown are standard adult reference ranges; your lab may use slightly different values.

Reference ranges vary by laboratory, so the range printed on your own report is the one that applies to it. The figures in these bars are the example ranges published by MedlinePlus (U.S. National Library of Medicine) wherever MedlinePlus gives one; the few bars it does not cover come from other sources.


Complete Blood Count (CBC)

The CBC is the most frequently ordered blood test. It evaluates red blood cells, white blood cells, and platelets to detect infections, anemia, clotting disorders, and immune system conditions.

WBC — White Blood Cells (×10³/µL)

LOW < 4.5
NORMAL 4.5 — 11.0
HIGH > 11.0

RBC — Red Blood Cells, Male (×10⁶/µL)

LOW < 4.2
NORMAL 4.2 — 5.7
HIGH > 5.7

RBC — Red Blood Cells, Female (×10⁶/µL)

LOW < 3.8
NORMAL 3.8 — 5.1
HIGH > 5.1

Hemoglobin, Male (g/dL)

LOW < 13.8
NORMAL 13.8 — 17.2
HIGH > 17.2

Hemoglobin, Female (g/dL)

LOW < 12.1
NORMAL 12.1 — 15.1
HIGH > 15.1

Hematocrit, Male (%)

LOW < 37
NORMAL 37 — 48
HIGH > 48

Hematocrit, Female (%)

LOW < 34
NORMAL 34 — 43
HIGH > 43

Platelets (×10³/µL)

LOW < 150
NORMAL 150 — 400
HIGH > 400

MCV — Mean Corpuscular Volume (fL)

LOW < 79
NORMAL 79 — 95
HIGH > 95

Comprehensive Metabolic Panel (CMP)

The CMP is a group of 14 tests that evaluate kidney function, liver function, electrolyte balance, and blood sugar — providing a broad overview of your body's chemical balance and metabolism.

Glucose, Fasting (mg/dL)

LOW < 70
NORMAL 70 — 100
HIGH > 100

BUN — Blood Urea Nitrogen (mg/dL)

LOW < 6
NORMAL 6 — 20
HIGH > 20

Creatinine (mg/dL)

LOW < 0.6
NORMAL 0.6 — 1.3
HIGH > 1.3

eGFR — Estimated Glomerular Filtration Rate (mL/min)

LOW < 60
NORMAL 90 — 120 (lower with age)

Sodium (mEq/L)

LOW < 135
NORMAL 135 — 145
HIGH > 145

Potassium (mEq/L)

LOW < 3.7
NORMAL 3.7 — 5.2
HIGH > 5.2

Calcium (mg/dL)

LOW < 8.8
NORMAL 8.8 — 10.3
HIGH > 10.3

Albumin (g/dL)

LOW < 3.4
NORMAL 3.4 — 5.4
HIGH > 5.4

Total Protein (g/dL)

LOW < 6.0
NORMAL 6.0 — 8.3
HIGH > 8.3

ALT — Alanine Aminotransferase (U/L)

NORMAL 4 — 36
HIGH > 36

AST — Aspartate Aminotransferase (U/L)

NORMAL 8 — 33
HIGH > 33

ALP — Alkaline Phosphatase (U/L)

LOW < 20
NORMAL 20 — 130
HIGH > 130

Bilirubin, Total (mg/dL)

NORMAL 0.1 — 1.2
HIGH > 1.2

Lipid Panel

The lipid panel measures fats and fatty substances in the blood to assess cardiovascular disease risk. It is one of the most important screening tests for heart health.

Total Cholesterol (mg/dL)

DESIRABLE < 200
BORDERLINE HIGH 200 — 239
HIGH ≥ 240

LDL Cholesterol (mg/dL)

OPTIMAL < 100
NEAR OPTIMAL 100 — 129
BORDERLINE 130 — 159 · HIGH ≥ 160

HDL Cholesterol (mg/dL)

LOW < 40 (M) / < 50 (F)
40 (M) / 50 (F) — 59
OPTIMAL ≥ 60

Triglycerides (mg/dL)

NORMAL < 150
BORDERLINE 150 — 199
HIGH ≥ 200

VLDL Cholesterol (mg/dL)

NORMAL 2 — 30
HIGH > 30

Thyroid Panel

The thyroid panel evaluates how well your thyroid gland is functioning. Thyroid hormones regulate metabolism, energy, body temperature, heart rate, and many other vital processes.

TSH — Thyroid-Stimulating Hormone (mIU/L)

LOW < 0.4
NORMAL 0.4 — 4.8
HIGH > 4.8

Free T4 — Thyroxine (ng/dL)

LOW < 0.8
NORMAL 0.8 — 1.9
HIGH > 1.9

Free T3 — Triiodothyronine (pg/mL)

LOW < 2.1
NORMAL 2.1 — 4.4
HIGH > 4.4

Iron Panel

The iron panel measures how much iron is in your blood and how well your body stores and transports it. Iron is essential for oxygen delivery, energy production, and immune function.

Serum Iron (µg/dL)

LOW < 59 (M) / 37 (F)
NORMAL 59 — 158 (M) · 37 — 145 (F)
HIGH > 158 (M) / 145 (F)

Ferritin, Male (ng/mL)

LOW < 30
NORMAL 30 — 400
HIGH > 400

Ferritin, Female (ng/mL)

LOW < 13
NORMAL 13 — 150
HIGH > 150

TIBC — Total Iron-Binding Capacity (µg/dL)

LOW < 171 (M) / 149 (F)
NORMAL 171 — 505 (M) · 149 — 492 (F)
HIGH > 505 (M) / 492 (F)

Transferrin Saturation (%)

LOW < 20 (M) / 15 (F)
NORMAL 20 — 50 (M) · 15 — 45 (F)
HIGH > 50 (M) / 45 (F)

Diabetes Markers

These markers assess blood sugar regulation and diabetes risk. HbA1c reflects your average blood sugar over the past 2-3 months, while fasting glucose and insulin provide a snapshot of current metabolic status.

HbA1c — Hemoglobin A1c (%)

NORMAL < 5.7
PREDIABETES 5.7 — 6.4
DIABETES ≥ 6.5

Fasting Glucose (mg/dL)

NORMAL < 100
PREDIABETES 100 — 125
DIABETES ≥ 126

Fasting Insulin (µIU/mL)

LOW < 2
NORMAL 2 — 20
HIGH > 20

Inflammatory Markers

Chronic low-grade inflammation is linked to heart disease, cancer, diabetes, and autoimmune conditions. These tests help identify hidden inflammation before it progresses to serious disease.

hs-CRP — High-Sensitivity C-Reactive Protein (mg/L)

LOW RISK < 1.0
AVERAGE 1.0 — 3.0
HIGH RISK > 3.0

ESR, Male — Erythrocyte Sedimentation Rate (mm/hr)

NORMAL < 15 (under 50)
15 — 20: NORMAL OVER 50
HIGH ≥ 20

ESR, Female — Erythrocyte Sedimentation Rate (mm/hr)

NORMAL < 20 (under 50)
20 — 30: NORMAL OVER 50
HIGH ≥ 30

Homocysteine (µmol/L)

NOT ELEVATED < 12
CUTOFFS VARY 12 — 16
ELEVATED > 16

Hormone Panel

Hormones regulate virtually every process in your body — from energy and mood to reproductive health and body composition. Imbalances can cause fatigue, weight gain, depression, and many other symptoms.

Testosterone, Male (ng/dL)

LOW < 249
NORMAL 249 — 836 (age 17–50)
HIGH > 836

Testosterone, Female (ng/dL)

LOW < 8.4
NORMAL 8.4 — 48.1 (age 17–50)
HIGH > 48.1

Estradiol, Premenopausal (pg/mL)

LOW < 30
NORMAL 30 — 400
HIGH > 400

Cortisol, Morning (µg/dL)

LOW < 5
NORMAL 5 — 25 (8 a.m.)
HIGH > 25

DHEA-S, Male (µg/dL)

LOW < 110
NORMAL 110 — 510 (age 18–29)
HIGH > 510

DHEA-S, Female (µg/dL)

LOW < 45
NORMAL 45 — 320 (age 18–29)
HIGH > 320

Vitamins & Minerals

Nutrient deficiencies are surprisingly common and can cause wide-ranging symptoms — from fatigue and brain fog to nerve damage and bone loss. These tests identify the most critical nutritional gaps.

Vitamin D (25-OH) (ng/mL)

DEFICIENT < 20
INSUFFICIENT 20 — 29
EXPERT-RECOMMENDED 30 — 80

Vitamin B12 (pg/mL)

LOW < 299
NORMAL 299 — 1054
HIGH > 1054

Folate (ng/mL)

LOW < 2.7
NORMAL 2.7 — 17.0
HIGH > 17.0

Magnesium (mg/dL)

LOW < 1.7
NORMAL 1.7 — 2.2
HIGH > 2.2

Urinalysis

A urinalysis checks the appearance, concentration, and content of urine. It can detect kidney disease, urinary tract infections, diabetes, and other metabolic conditions.

pH

ACIDIC < 4.6
NORMAL 4.6 — 8.0
ALKALINE > 8.0

Specific Gravity

LOW < 1.005
NORMAL 1.005 — 1.030
HIGH > 1.030

Protein

NORMAL — Negative
ABNORMAL — Positive

Glucose

NORMAL — Negative
ABNORMAL — Positive

Coagulation Panel

Coagulation tests measure how well your blood clots. They are essential before surgeries, for monitoring blood-thinning medications, and for diagnosing bleeding or clotting disorders.

PT — Prothrombin Time (seconds)

LOW < 11
NORMAL 11 — 13.5
HIGH > 13.5

INR — International Normalized Ratio (therapeutic on warfarin: 2.0–3.0)

LOW < 0.8
NORMAL 0.8 — 1.1
HIGH > 1.1

aPTT — Activated Partial Thromboplastin Time (seconds)

LOW < 25
NORMAL 25 — 35
HIGH > 35

Kidney Function (BUN, Creatinine, eGFR, Cystatin C)

BUN, creatinine, and eGFR appear on every Comprehensive Metabolic Panel and form the screening backbone for kidney function. Cystatin C is a muscle-mass-independent filtration marker that detects mild renal impairment earlier than creatinine and refines eGFR in non-standard body composition (frail elderly, athletes, amputees). Together they stage chronic kidney disease (CKD G1–G5) and detect acute kidney injury. Read the full Kidney Function guide →

Cystatin C (mg/L)

LOW < 0.5
NORMAL 0.5 — 1.0
HIGH > 1.0 (suggests reduced GFR)

eGFR — CKD Staging (mL/min/1.73 m²)

G4–G5 < 30 (severe)
G3 30–59 (moderate)
G1–G2 ≥ 60 (normal/mild)

Deep dives: BUN · Creatinine · eGFR · Cystatin C

Other Important Tests

These additional tests are frequently ordered during annual physicals and can reveal conditions such as gout, liver dysfunction, and prostate issues.

Uric Acid, Male (mg/dL)

LOW < 4.0
NORMAL 4.0 — 8.6
HIGH > 8.6

Uric Acid, Female (mg/dL)

LOW < 3.0
NORMAL 3.0 — 7.1
HIGH > 7.1

GGT — Gamma-Glutamyl Transferase (U/L)

NORMAL 5 — 40
ELEVATED > 40

PSA — Prostate-Specific Antigen, Male (ng/mL)

NORMAL < 4.0
ELEVATED > 4.0

Specialized Cardiovascular & Hormonal Tests

These tests go beyond the standard annual panel to provide deeper insight into inflammation, cellular omega-3 status, and reproductive hormone reserve — tools increasingly used in preventive cardiology, integrative medicine, and fertility planning.

hs-CRP — High-Sensitivity C-Reactive Protein (mg/L)

LOW RISK < 1.0
AVERAGE RISK 1.0 — 3.0
HIGH RISK > 3.0

The most clinically useful marker of low-grade chronic vascular inflammation and independent cardiovascular risk. Detects inflammation invisible to standard CRP. Target for optimal cardiovascular health: below 0.5 mg/L. Elevated by smoking, obesity, sleep apnea, periodontal disease, and metabolic syndrome. Read the full hs-CRP guide →

Omega-3 Index (EPA + DHA in red blood cell membranes) (%)

LEAST PROTECTION ≤ 4%
INTERMEDIATE 4% — 8%
GREATEST PROTECTION ≥ 8%

Measures EPA + DHA as a percentage of total fatty acids in red blood cell membranes — reflecting true 3-month average omega-3 tissue status. Predicts sudden cardiac death risk, arrhythmia, depression, cognitive aging, and preterm birth. Most Americans fall in the high-risk 4–5% range. Target: above 8%, optimal above 10%. Read the full Omega-3 Index guide →

AMH — Anti-Müllerian Hormone (women, age 35) (ng/mL)

LOW RESERVE < 0.7
AVERAGE 0.7 — 2.0
GOOD RESERVE > 2.0

Primary marker of ovarian reserve — how many eggs remain. Stable across the menstrual cycle; can be drawn any day. Declines with age, smoking, endometriosis surgery, and chemotherapy. Elevated in PCOS (>4–5 ng/mL). Reference ranges are age-specific — an AMH of 1.0 ng/mL means very different things at 28 vs. 40. Read the full AMH guide →

Genetic, Cardiac Injury & Autoimmune Tests

These tests assess genetic methylation risk, acute heart muscle injury, and autoimmune intestinal damage — three areas where targeted testing can dramatically change clinical management.

MTHFR Gene Mutation (C677T / A1298C) (genotype)

NEGATIVE — no common variant
ONE COPY — unlikely to cause problems
2 × C677T, or C677T + A1298C

Identifies inherited variants that reduce the MTHFR enzyme responsible for converting folate to its active form (methylfolate) and recycling homocysteine. Homozygous C677T or compound heterozygous carriers need methylated B vitamins (methylfolate, methylcobalamin) and should monitor homocysteine. Always test homocysteine alongside MTHFR genotyping to assess functional impact. Read the full MTHFR guide →

Cardiac Troponin I & T (hs-cTnI / hs-cTnT) (ng/L)

NORMAL (hs-cTnT) < 14 ng/L (F) / < 22 ng/L (M)
ELEVATED — Myocardial injury

The gold-standard marker of heart muscle injury. Elevated in acute myocardial infarction, myocarditis, heart failure, pulmonary embolism, and sepsis. High-sensitivity assays detect injury 10–100x earlier than conventional tests and enable 0h/1h rule-out protocols in emergency settings. A rising-and-falling pattern on serial measurements confirms acute MI. Read the full Cardiac Troponin guide →

Tissue Transglutaminase IgA (tTG-IgA) — Celiac Panel (U/mL)

NEGATIVE < 4 U/mL
WEAKLY POSITIVE 4–10 U/mL
POSITIVE > 10 U/mL

The first-line serological test for celiac disease. Must be drawn while the patient is eating a gluten-containing diet — a gluten-free diet normalizes antibodies and causes false negatives. Always include total IgA to detect IgA deficiency, which invalidates all IgA-based results. Positive serology in adults requires duodenal biopsy confirmation. Read the full Celiac Disease Panel guide →

Conventional vs. Functional/Optimal Ranges

Most lab reports use conventional reference ranges that are derived from population averages — which include many unhealthy individuals. Functional medicine practitioners often use narrower, optimal ranges based on healthy populations and peer-reviewed research. For example, a conventional TSH range might be 0.4–4.0, while a functional optimal range is 1.0–2.5. Similarly, conventional fasting glucose of 65–99 may be considered normal, but functional practitioners prefer 75–86.

If your results fall within conventional ranges but you still experience symptoms, consider asking your provider about functional/optimal ranges — early intervention at the "sub-optimal" stage can prevent progression to diagnosable disease.


IMPORTANT DISCLAIMER: This page is an educational reference to help you understand your lab results. It does NOT replace professional medical interpretation. Reference ranges may vary between laboratories. Always discuss your results with a qualified healthcare provider who can consider your complete health picture, symptoms, medications, and medical history.

Back to Table of Contents


All Lab Tests A–Z

Every topic in this section, listed alphabetically — including the ones that do not belong to a standard panel above.

Connections

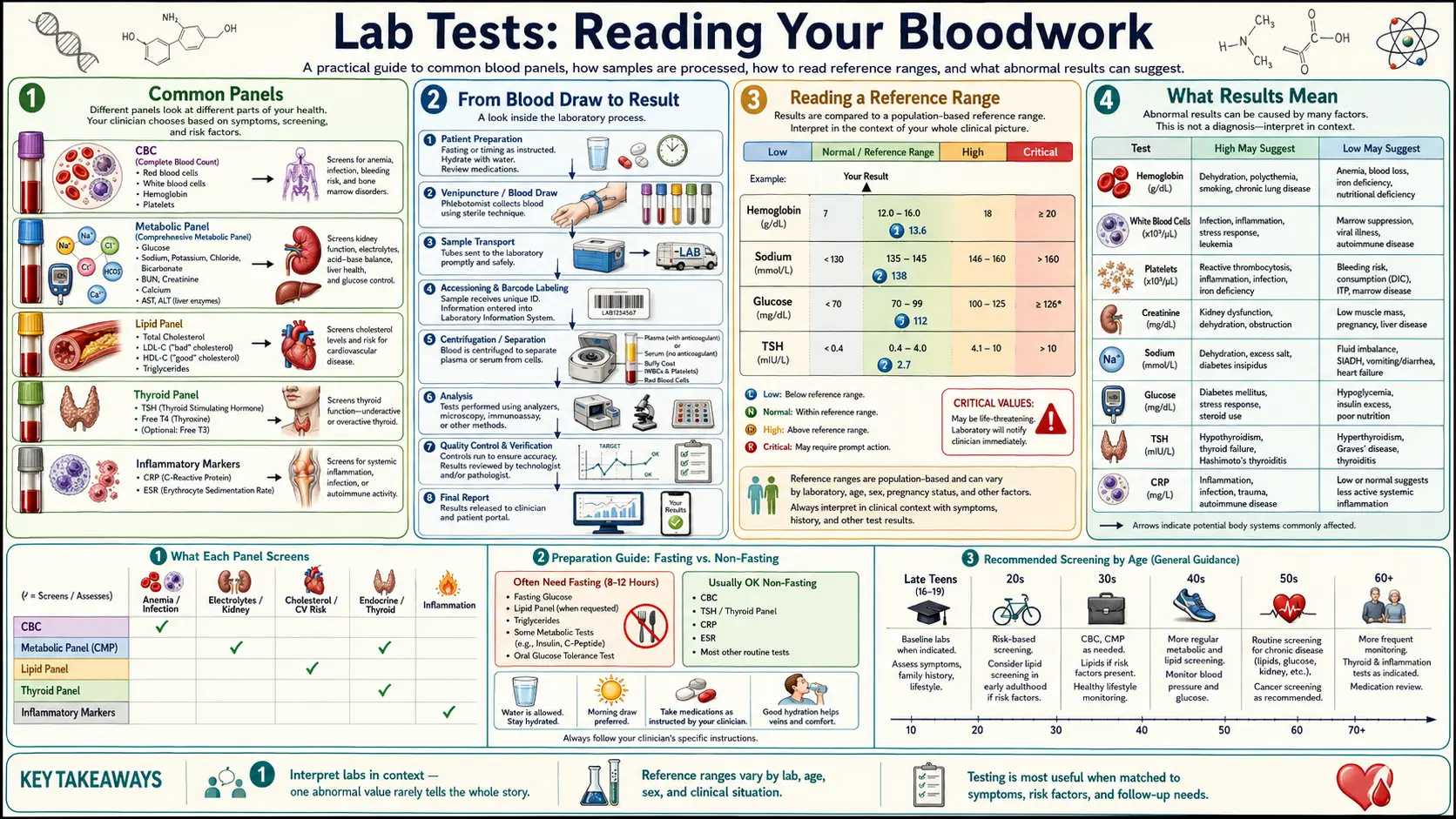

Lab Tests — scientific infographic poster
