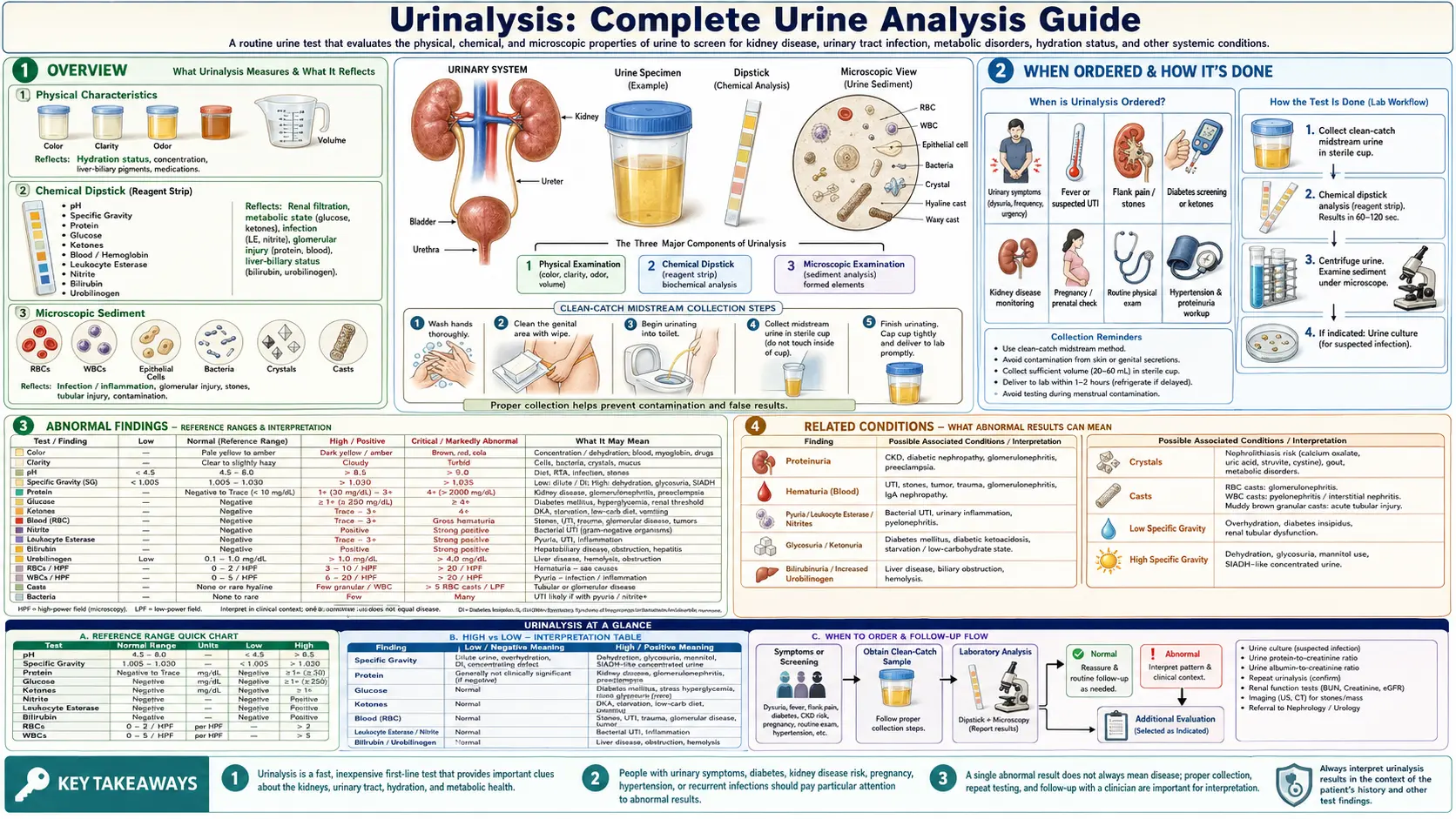

Urinalysis: Complete Urine Analysis Guide
A urinalysis (UA) is one of the most common and informative diagnostic tests in clinical medicine. By examining the physical, chemical, and microscopic properties of urine, clinicians can detect a wide range of conditions affecting the kidneys, urinary tract, liver, and metabolic systems — often before symptoms appear.
Table of Contents
- Overview
- When Ordered
- Components and Reference Ranges
- Interpretation Patterns
- Abnormal Findings
- Related Conditions
- References
Overview
Urine is produced by the kidneys as they filter blood, removing waste products, excess electrolytes, and water. A standard urinalysis consists of three components: a visual inspection (color, clarity, odor), a dipstick chemical analysis (pH, protein, glucose, blood, leukocyte esterase, nitrites, bilirubin, ketones, urobilinogen), and a microscopic examination (cells, casts, crystals, bacteria).
Because urine reflects the biochemical state of the entire body, abnormalities detected on urinalysis can serve as early warning signs of systemic disease. The test is inexpensive, non-invasive, and provides results quickly, making it a cornerstone of both routine wellness screening and acute diagnostic workups.
A midstream clean-catch specimen is the standard collection method for routine urinalysis. The first morning void is preferred because it is the most concentrated and most likely to reveal subtle abnormalities. For culture and sensitivity testing, strict aseptic technique is required to avoid contamination.
When Ordered
Urinalysis is ordered across a wide variety of clinical situations:
- Routine screening during annual physical examinations or pre-operative workups
- Suspected urinary tract infection (UTI) — burning, urgency, frequency, cloudy or foul-smelling urine
- Kidney disease evaluation — monitoring patients with chronic kidney disease (CKD), nephrotic syndrome, or glomerulonephritis
- Diabetes management — screening for glucosuria and microalbuminuria as markers of diabetic nephropathy
- Hypertension workup — identifying proteinuria as a sign of hypertensive nephropathy
- Pregnancy monitoring — routine screening for preeclampsia, UTIs, and gestational diabetes
- Hematuria investigation — visible or microscopic blood in the urine
- Metabolic disorders — evaluating ketoacidosis, liver disease, or inborn errors of metabolism
- Follow-up after treatment for UTI, kidney stones, or nephritis
Components and Reference Ranges
pH
Urine pH reflects the kidney's ability to regulate acid-base balance. Normal urine is slightly acidic, though dietary factors and medications can shift it significantly. Alkaline urine raises the risk of certain kidney stones and may indicate urease-producing bacterial infection.
Urine pH (units)
Clinical notes: A pH below 5.0 suggests metabolic acidosis, high-protein diet, or severe dehydration. A pH above 7.5 suggests urinary tract infection with urease-producing organisms (e.g., Proteus mirabilis), renal tubular acidosis type I, or vegetarian diet. The kidneys tightly regulate systemic pH by excreting hydrogen ions or bicarbonate as needed.
Specific Gravity
Specific gravity measures urine concentration by comparing its density to pure water. It reflects the kidney's concentrating ability and hydration status. Persistently dilute urine may indicate diabetes insipidus or overhydration; persistently concentrated urine may indicate dehydration or SIADH.
Specific Gravity (dimensionless ratio)
Clinical notes: Isosthenuria (fixed specific gravity around 1.010) in the context of kidney disease suggests severe tubular dysfunction. Values consistently below 1.005 warrant evaluation for diabetes insipidus. First morning voids in healthy adults typically exceed 1.020.
Protein
Healthy kidneys filter very little protein into the urine; most filtered protein is reabsorbed by tubular cells. Persistent proteinuria is one of the most important indicators of kidney damage and is also a cardiovascular risk marker. The dipstick primarily detects albumin.
Urine Protein (mg/dL dipstick)
Clinical notes: Trace protein may be seen after vigorous exercise (orthostatic proteinuria), fever, or dehydration and is usually benign. Persistent 2+ or higher proteinuria warrants a 24-hour urine protein collection or a spot urine protein-to-creatinine ratio. Nephrotic-range proteinuria exceeds 3.5 g per day and is associated with edema, hypoalbuminemia, and hyperlipidemia.
Glucose
Glucose normally does not appear in urine because the renal tubules reabsorb it completely. Glucosuria occurs when blood glucose exceeds the renal threshold (approximately 180 mg/dL) or when tubular reabsorption is impaired (Fanconi syndrome).
Urine Glucose (mg/dL)
Clinical notes: Any glucosuria in a non-pregnant adult warrants serum glucose measurement and evaluation for diabetes mellitus. SGLT2 inhibitors (used to treat diabetes) intentionally cause glucosuria as their mechanism of action. Renal glucosuria without hyperglycemia occurs in benign familial renal glucosuria or Fanconi syndrome.
Blood (Hematuria)
The dipstick detects both intact red blood cells (hematuria) and free hemoglobin or myoglobin (hemoglobinuria/myoglobinuria). Microscopy is required to distinguish true hematuria from pigmenturia.
Urine Blood (RBC/hpf on microscopy)
Clinical notes: Microscopic hematuria (>3 RBC/hpf) requires further evaluation including cystoscopy and imaging to rule out bladder cancer, kidney stones, or glomerulonephritis. Dysmorphic red cells (acanthocytes) on microscopy suggest glomerular origin. Gross hematuria always requires urgent workup. Menstruation, vigorous exercise, and recent urologic procedures can cause transient hematuria.
White Blood Cells (Leukocyte Esterase)
Leukocyte esterase detects WBCs in urine, indicating pyuria — the presence of pus cells. Pyuria is the hallmark of urinary tract infection but also occurs in sterile inflammatory conditions.
Leukocyte Esterase / WBC (WBC/hpf)
Clinical notes: Pyuria with positive nitrites strongly suggests bacterial UTI. Sterile pyuria (WBCs without bacteria) occurs in tuberculosis of the urinary tract, interstitial nephritis, chlamydial urethritis, and analgesic nephropathy. WBC casts on microscopy indicate pyelonephritis or interstitial nephritis.
Nitrites
Many uropathogenic bacteria (especially gram-negative organisms) convert dietary nitrates to nitrites via bacterial reductase enzymes. A positive nitrite test suggests bacteriuria, but a negative result does not exclude infection because not all bacteria produce nitrite reductase.
Urine Nitrites (qualitative)
Clinical notes: Escherichia coli, Klebsiella, and Proteus species reliably produce positive nitrites. Staphylococcus saprophyticus, Enterococcus, and Pseudomonas do not produce nitrites and will give false-negative results. The urine must have been in the bladder for at least four hours for sufficient nitrite conversion. Combined leukocyte esterase and nitrite positivity has a high predictive value for UTI.
Bilirubin
Conjugated (direct) bilirubin is water-soluble and can be excreted in urine. Unconjugated bilirubin is lipid-soluble and does not appear in urine. Bilirubinuria indicates hepatocellular disease or biliary obstruction.
Urine Bilirubin (qualitative)
Clinical notes: Bilirubinuria precedes clinically visible jaundice and can serve as an early indicator of liver disease. It is positive in viral hepatitis, alcoholic liver disease, cholestasis, and biliary obstruction. It is absent in hemolytic jaundice (where only unconjugated bilirubin is elevated). Exposure of the specimen to light degrades bilirubin rapidly; testing must be performed promptly.
Ketones
Ketones (acetoacetate, beta-hydroxybutyrate, acetone) are produced when the body oxidizes fat for energy rather than glucose. The dipstick detects primarily acetoacetate. Ketonuria reflects increased fat catabolism from any cause.
Urine Ketones (qualitative)
Clinical notes: Ketonuria occurs in diabetic ketoacidosis (DKA), starvation, prolonged fasting, ketogenic diets, alcoholic ketoacidosis, and severe vomiting. In diabetic patients, ketonuria with hyperglycemia is an emergency warranting immediate evaluation. Moderate ketonuria in a non-diabetic person on a low-carbohydrate diet is physiologically normal. The dipstick does not detect beta-hydroxybutyrate, the predominant ketone in DKA, which requires serum testing.
Urobilinogen
Urobilinogen is produced in the intestine by bacterial reduction of conjugated bilirubin. It is reabsorbed into the portal circulation and a small amount is excreted in urine. Elevated levels suggest increased bilirubin turnover or hepatocellular dysfunction; absent levels suggest complete biliary obstruction.
Urine Urobilinogen (mg/dL)
Clinical notes: Elevated urobilinogen occurs in hemolytic anemias, hepatitis, cirrhosis, and congestive heart failure with hepatic congestion. Absent urobilinogen, combined with positive bilirubinuria, strongly suggests complete bile duct obstruction (e.g., from a stone or tumor). Antibiotics can reduce urobilinogen by eliminating intestinal bacteria that produce it.
Interpretation Patterns
Urinalysis findings gain their greatest clinical value when interpreted together as patterns rather than in isolation:
- UTI pattern: Positive leukocyte esterase + positive nitrites + WBCs on microscopy + bacteria. Consider concurrent blood and protein if pyelonephritis is suspected.
- Nephrotic syndrome: Heavy proteinuria (3+ or 4+) + lipiduria (fatty casts, oval fat bodies) + often minimal hematuria. Specific gravity may be high due to protein content.
- Nephritic syndrome: Hematuria + proteinuria + RBC casts on microscopy + possible hypertension and reduced GFR. RBC casts are pathognomonic of glomerulonephritis.
- Diabetic nephropathy: Microalbuminuria progressing to overt proteinuria + possible glucosuria. Dipstick may miss microalbuminuria; a spot albumin-to-creatinine ratio is more sensitive.
- Hepatic disease: Bilirubinuria + elevated urobilinogen + possibly proteinuria in advanced disease.
- DKA: Glucosuria + ketonuria + low pH + possible proteinuria from dehydration.
- Dehydration: High specific gravity + concentrated color + possibly trace protein and mildly elevated WBCs from concentrated specimen.
- Kidney stones: Hematuria (often gross) + possible WBCs if secondary infection + crystals on microscopy (calcium oxalate, uric acid, struvite).
Abnormal Findings
Beyond the dipstick components, microscopic examination adds critical diagnostic detail:
- Hyaline casts: Fine, transparent casts composed of Tamm-Horsfall protein. Small numbers are normal; increased numbers occur with dehydration, fever, and vigorous exercise.
- Granular casts: Coarse or fine granular deposits within casts. Coarsely granular casts suggest tubular cell degeneration; fine granular casts may appear in a variety of kidney diseases.
- RBC casts: Pathognomonic for glomerulonephritis. Require urgent nephrology evaluation.
- WBC casts: Indicate upper urinary tract inflammation — pyelonephritis or interstitial nephritis.
- Waxy casts: Broad, waxy casts indicate severe chronic kidney disease with reduced urine flow in dilated tubules ("broad casts of renal failure").
- Epithelial cell casts: Sloughed tubular cells within a cast; occur in acute tubular necrosis, heavy metal toxicity, and certain viral infections.
- Crystals: Calcium oxalate (envelope or dumbbell shape), uric acid (rhomboid, yellow-brown), cystine (hexagonal), struvite (coffin-lid). Clinical significance depends on clinical context.
Related Conditions
Urinalysis findings are central to the diagnosis and monitoring of numerous conditions:
- Urinary tract infections — acute cystitis, pyelonephritis, urethritis
- Diabetes mellitus — glucosuria, ketonuria (DKA), microalbuminuria (nephropathy)
- Chronic kidney disease (CKD) — proteinuria, hematuria, casts
- Glomerulonephritis — IgA nephropathy, lupus nephritis, post-streptococcal GN
- Nephrotic syndrome — minimal change disease, membranous nephropathy, focal segmental glomerulosclerosis
- Kidney stones (nephrolithiasis) — gross or microscopic hematuria, crystals
- Liver disease — hepatitis, cirrhosis, biliary obstruction
- Bladder cancer — painless gross hematuria, atypical cells on cytology
- Preeclampsia — new-onset proteinuria after 20 weeks gestation
- Interstitial nephritis — WBC casts, eosinophiluria (Wright stain required)
References
- Simerville JA, Maxted WC, Pahira JJ. Urinalysis: a comprehensive review. Am Fam Physician. 2005;71(6):1153–1162.
- Fogazzi GB, Verdesca S, Garigali G. Urinalysis: core curriculum 2008. Am J Kidney Dis. 2008;51(6):1052–1067.
- Shaw ST Jr, Poon SY, Wong ET. "Routine urinalysis." Is the dipstick enough? JAMA. 1985;253(11):1596–1600.
- Devillé WL, Yzermans JC, van Duijn NP, Bezemer PD, van der Windt DA, Bouter LM. The urine dipstick test useful to rule out infections. A meta-analysis of the accuracy. BMC Urol. 2004;4:4.
- Schrier RW, ed. Diseases of the Kidney and Urinary Tract. 8th ed. Lippincott Williams & Wilkins; 2007.
- Tsai JJ, Yeun JY, Kumar VA, Don BR. Comparison and interpretation of urinalysis performed by a nephrologist versus a hospital-based clinical laboratory. Am J Kidney Dis. 2005;46(5):820–829.
- Rao PV. Clinical approach to renal tubular disorders. Indian J Nephrol. 2011;21(4):213–220.
- National Kidney Foundation. K/DOQI clinical practice guidelines for chronic kidney disease. Am J Kidney Dis. 2002;39(2 Suppl 1):S1–266.
- American Diabetes Association. Standards of Medical Care in Diabetes — 2023. Diabetes Care. 2023;46(Suppl 1):S1–S291.
- Subramanian RM, Khardori R. Approach to the patient with urinalysis abnormalities. Prim Care. 2014;41(4):839–855.
- Cavanaugh C, Perazella MA. Urine sediment examination in the diagnosis and management of kidney disease: core curriculum 2019. Am J Kidney Dis. 2019;73(2):258–272.
- Hicks JM, Haeckel R, Price CP, Lewandrowski K, Wu AH. Recommendations and opinions for the use of point-of-care testing for hospitals and primary care: summary of a 1999 symposium. Clin Chim Acta. 2001;303(1–2):1–17.
